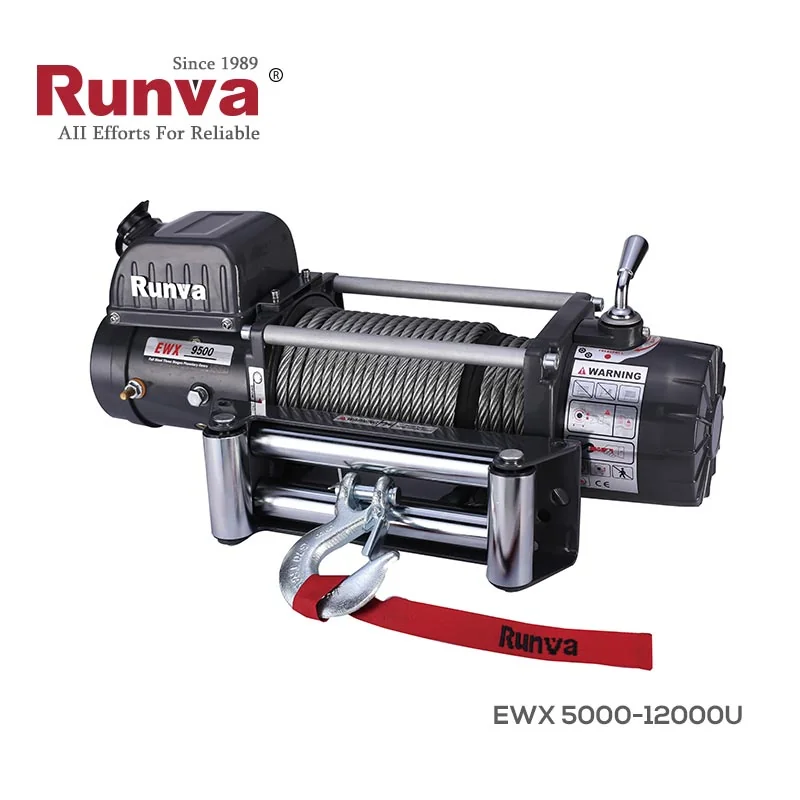

Runva Electric Winch, 12 Volt, 5,000 lbs.

Description

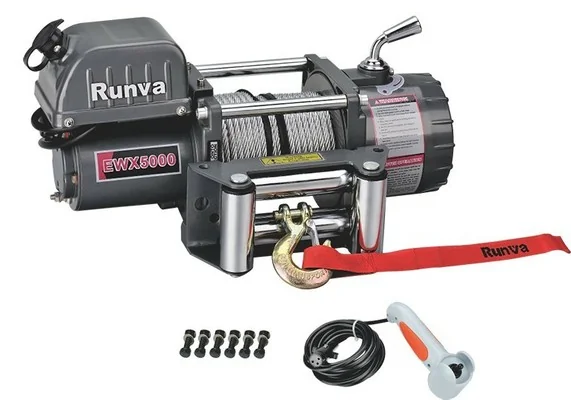

EWX 5000

This  electric  winch is excellent for Arborists to quickly and effortlessly pull logs or other equipment.

When thinning small diameter logs, the electric winch mounted on a small tractor can easily skid logs to roadside.

Features:

• Full steel gear
• Runva patent three stage planetary gear reducer
• Sliding geared ring clutch
• Automatic screw cone braking action
• Remote control through control box and switch
• Wireless remote control available
• DC 12v  Power drive

• Overall dimensions	18.0″×6.3 “×10.0 “
  (L×W×H)	456mm ×160mm ×254mm
  Net weight (Ibs/kg)	54.5lbs / 24.7kg

• Rated Line Pull – 5,000 LBS
• Motor: permanent magnet 12V:Input: 3.4 kW / 4.5hp; Output: 1.4 kW / 1.9hp
  Gear reduction ratio  280:1
• Cable (Dia.× L)Ø1/4 “×79 ‘ (Ø6.4mm×24m)
• Drum size (Dia.× L)Ø2.48 “×5.3 ” (Ø63mm×133.5 mm)
• Mounting bolt pattern 6.55 “×4.5 ” (166.4mm×114.3 mm) 4-M10
•
