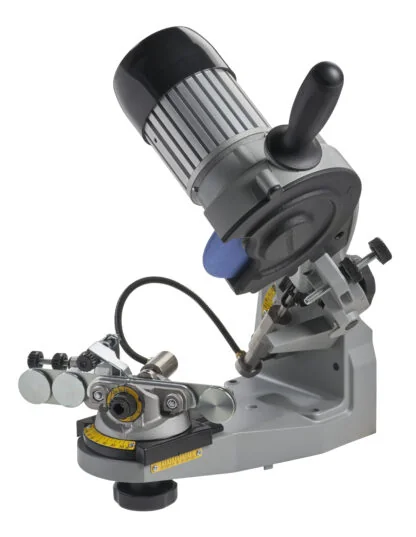

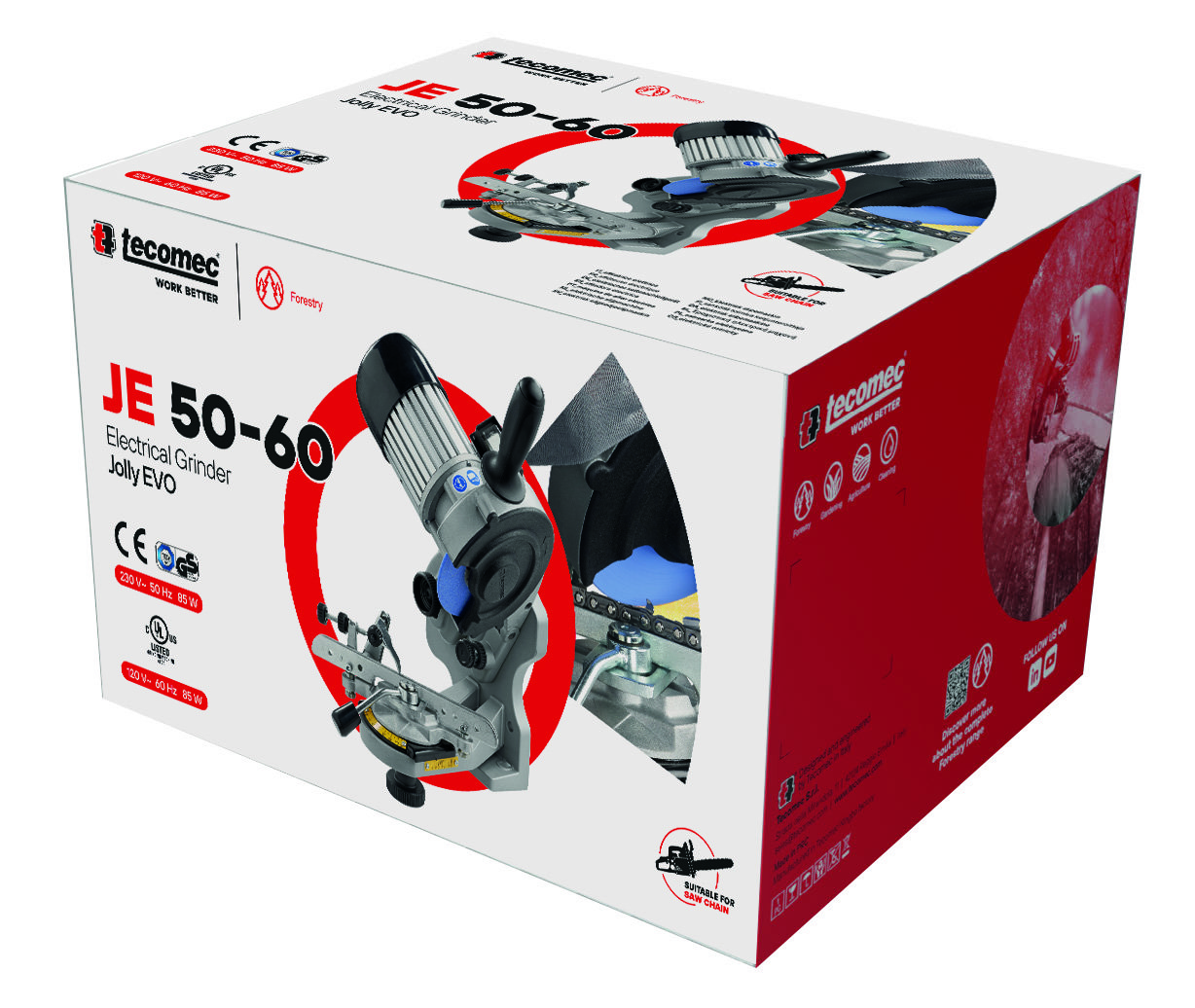

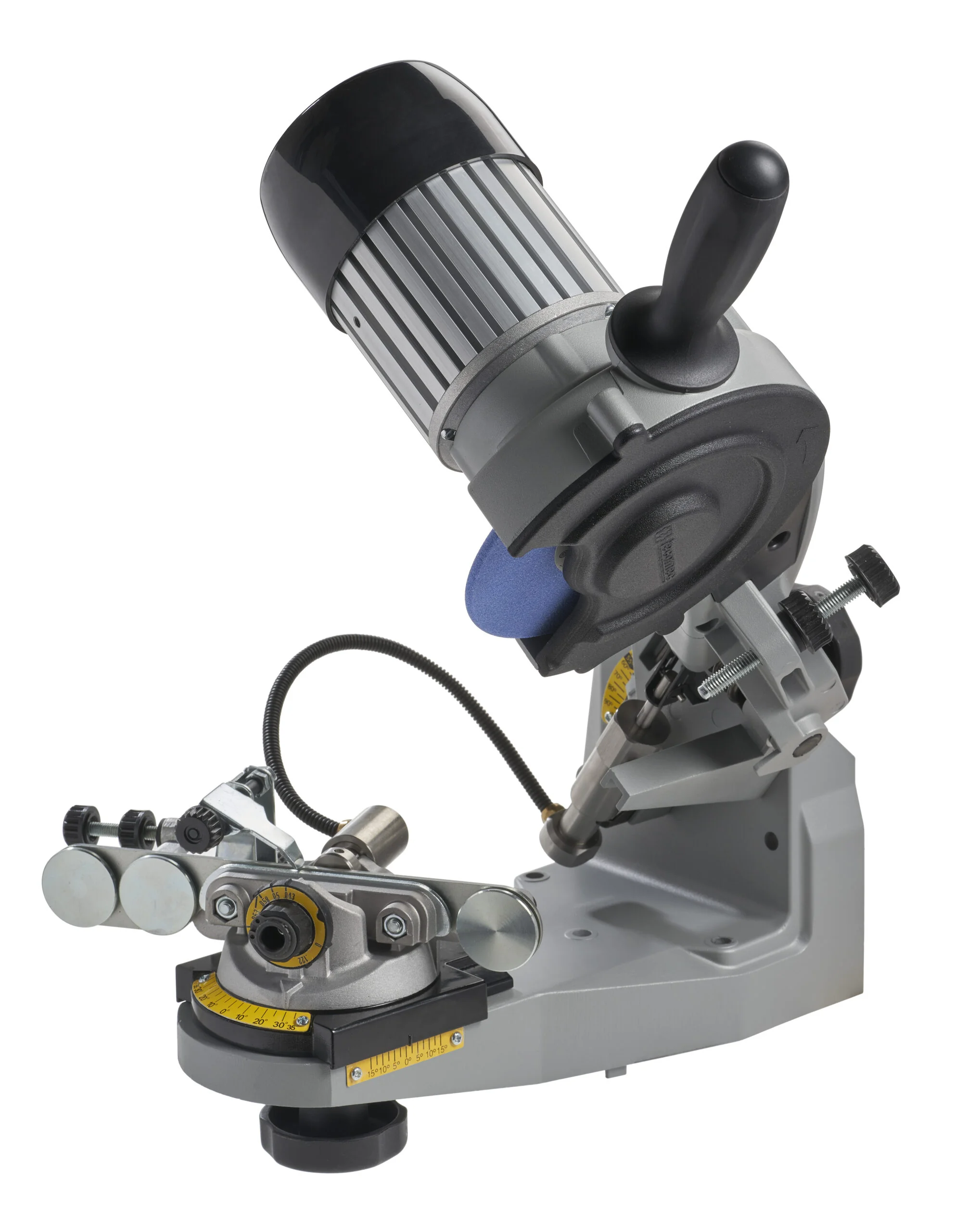

Tecomec JollyEVO JE50-60 Chain Grinder.
Tecomec JollyEVO JE50-60 Chain Grinder. - Image 2

Tecomec JollyEVO JE50-60 Chain Grinder.

€203.21 (ex VAT)

Categories: ,

Description

Keep your cutting gear running at peak cutting performance with the Tecomec JollyEVO JE50-60, the direct professional successor to the industry-favourite Jolly Star Pro. Manufactured in Italy, this heavy-duty electrical grinder is engineered specifically for busy workshops, tree surgeons, forestry contractors, and demanding firewood producers who require consistent, factory-grade precision chain after chain.
Featuring a robust cast-aluminium chassis and an upgraded continuous-duty motor, the JollyEVO delivers vibration-free stability and repeatable accuracy. The integrated self-centring vise ensures both left- and right-hand cutters are ground to identical lengths and angles without manual recalibration, while the built-in LED work light gives you a clear line of sight right at the contact point.
Key Features & Workshop Benefits

Versatile 3-Way Mounting: Easily adapted to any workshop space—mount it flat on your workbench, bolt it directly to a wall, or secure the base directly into a mechanic’s bench vise.

Self-Centring Chain Vise: Automatically centres the chain under the wheel, eliminating tooth-length imbalances between left and right cutters.

Integrated LED Illumination: Bright, shadow-free lighting focused directly on the cutter and wheel contact area for exceptional visibility.

S1 Continuous-Duty Motor: Rated for sustained commercial grinding without thermal cut-outs or power sag.

Broad Pitch Range: Ready out of the box for standard pitches from 1/4″ up to .404″.

Technical Specifications

Voltage: 230V – 50 Hz
Motor Power: 220 W (S1 continuous duty)
Operating Speed: 2,700 RPM
Chassis Material: Heavy-duty die-cast aluminium
Wheel Diameter: 145 mm (22.2 mm internal arbor bore)
Standard Chain Pitch Range: 1/4″, .325″, 3/8″ LP, 3/8″, and .404″
Gross Weight: Approx. 8 kg
Manufacturer Warranty: 3 Years

What’s in the Box?

1 × Tecomec JollyEVO JE50-60 Chain Grinder
1 × 145 mm × 3.2 mm grinding wheel (for 1/4″ and 3/8″ Low Profile chains)
1 × 145 mm × 4.7 mm grinding wheel (for .325″ and standard 3/8″ chains)
1 × 145 mm × 6.0 mm flat grinding wheel (for depth gauges / rakers)
1 × Dressing brick for profiling and cleaning the wheel face
1 × Precision sharpening contour template gauge
2 × Hex adjustment keys (4 mm & 5 mm)
1 × Complete instruction manual

Optional Attachments (Available Separately)

3/4″ Pitch Harvester Vise Assembly (Part No: 1102900) – For heavy timber extraction and mechanised harvesting heads.
10° Down-Angle Tilting Attachment (Part No: 1135026) – For specialised chisel and skip-tooth profiles requiring negative top-plate rake angles.

(Direct replacement for legacy Tecomec models and part numbers: TEC11359001 / 11359001 / Jolly Star Pro).

See below for a handy generic guide on how to setup an electric sharpener.
