Tecomec Super Jolly SJ PRO EVO

Description

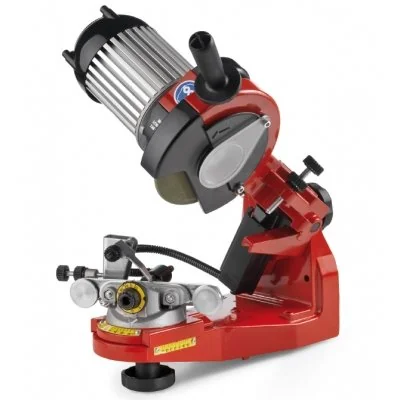

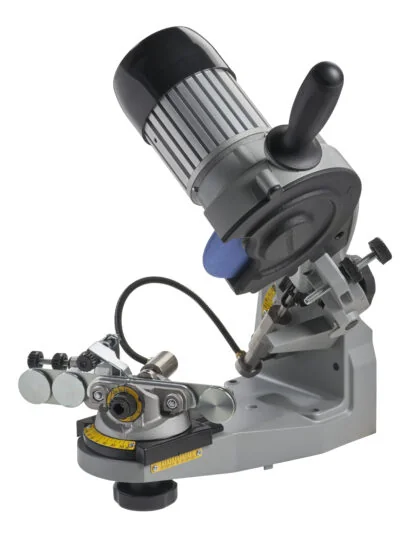

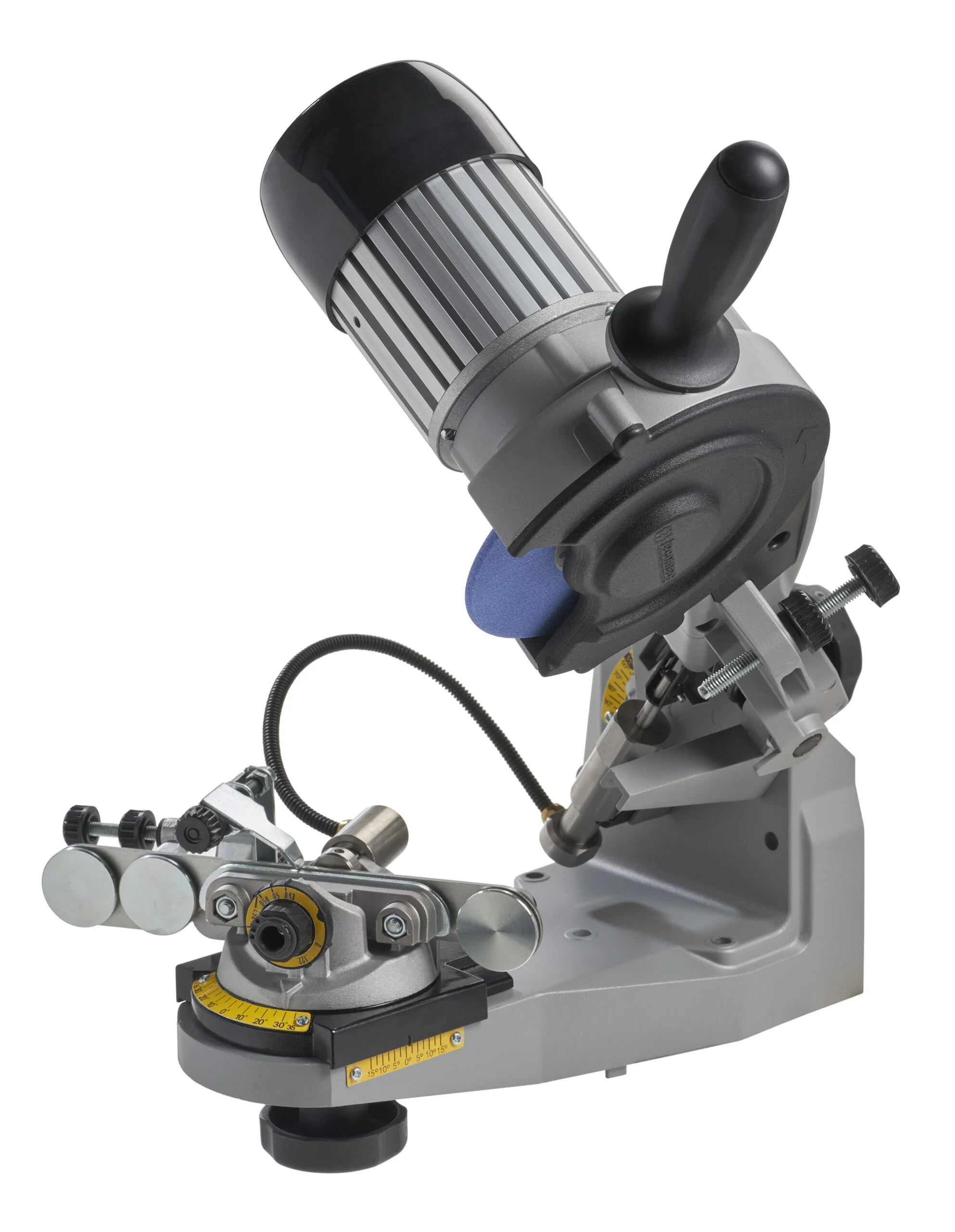

Tecomec Super Jolly SJ PRO EVO Professional Hydraulic Chain Grinder

The Tecomec Super Jolly SJ PRO EVO (P/N 11519000) represents the latest evolution of the world’s most trusted commercial chainsaw chain grinder. Designed and manufactured in Reggio Emilia, Italy, the SJ PRO EVO is built specifically for high-volume workshops, tree care contractors, forestry teams, and harvester operators who need industrial durability and repeatable precision.

At the heart of the SJ PRO EVO is its semi-automatic hydraulic clamping vise. The moment the grinding head is pulled down toward the cutter, the hydraulic system automatically locks the chain solidly in place. As you raise the head, the vise instantly releases, allowing you to index to the next cutter in one fluid motion. This semi-automatic cycle eliminates manual clamping on every tooth and cuts chain sharpening time by up to 50%.

Key Features & Workshop Upgrades

Semi-Automatic Hydraulic Vise: Clamps and unclamps automatically with the downward and upward stroke of the grinding arm, ensuring consistent clamping pressure and rapid tooth-to-tooth indexing.
Stainless-Steel Hydraulic Circuit: Enclosed master and slave cylinders engineered with stainless components for continuous, leak-free operation in busy repair shops.
Self-Centring Chain Track: Automatically centres the drive link under the wheel, guaranteeing identical cutter tooth lengths and angles on both left- and right-hand cutters.
3/4″ Harvester Ready: Includes the dedicated heavy-duty 3/4″ chain hold fixture and template directly in the box—no costly conversion kit required.
Built-in LED Work Light: High-output, vibration-resistant LED illumination focuses clean, shadow-free light directly onto the cutter contact point.
Complete Multi-Angle Adjustment: Full top-plate angle, vise rotation, and tilt adjustments to sharpen standard semi-chisel, full-chisel, and 10° down-angle skip-tooth chains.
No-Volt Safety Switch: Built-in restart protection prevents accidental motor engagement following a mains power interruption.

Technical Specifications

Model / Part Number: Tecomec SJ PRO EVO (⁠11519000⁠)
Voltage: 230 V ~ 50 Hz
Power Rating: 214 W (S1 continuous-duty workshop rating)
Operating Speed: 2,800 RPM
Chain Pitch Compatibility: 1/4″, .325″, 3/8″ Low Profile, 3/8″ Standard, .404″, and 3/4″ Harvester
Drive Link Gauge Range: 1.1 mm (.043″) to 2.0 mm (.080″) + 3.1 mm (3/4″)
Wheel Dimensions: Ø 145 mm outer diameter × 22.2 mm (7/8″) internal arbor
Chassis Construction: Heavy-duty die-cast aluminium
Mounting Options: Dual bench-mount or vertical wall-mount
Weight: Approx. 7.5 kg (Shipping weight ~9.6 kg)
Manufacturer Warranty: 3-Year Commercial Warranty

What’s Included in the Box

1 × Tecomec Super Jolly SJ PRO EVO Grinder Unit (230V)
1 × Grinding Wheel 145 mm × 3.2 mm (for 1/4″ & 3/8″ Low Profile chains)
1 × Grinding Wheel 145 mm × 4.7 mm (for .325″ & 3/8″ standard chains)
1 × Grinding Wheel 145 mm × 6.0 mm / 8.0 mm (for depth gauges / rakers)
1 × Wheel dressing brick for shaping wheel radius and removing glaze
1 × Standard chain sharpening contour template gauge
1 × Dedicated 3/4″ harvester chain template gauge
1 × Heavy-duty 3/4″ chain stop / hold kit (⁠P/N K00200334⁠)
2 × Hex adjustment keys (4 mm & 5 mm)
1 × Bench / wall mounting hardware set (M8 bolts, washers, and nuts)
1 × Comprehensive operator manual
